• SMA 90 DEGREE KITS - SMA male to female & SMA female to RP SMA male 90 & RP SMA female to RP SMA male
• FEMALE to FEMALE KITS - SMA female to female barrel & RP SMA female to RP SMA female barrel & SMA female to RP SMA female barrel & SMA female to female bulkhead; MALE to FEMALE KITS - SMA male to female & RP SMA male to SMA female & RP SMA Female to SMA male; MALE TO MALE KITS - SMA male to male & SMA male to RP SMA male & RP SMA male to RP SMA male
• T TYPE 3 WAY KITS - SMA male to dual SMA female & RP SMA male to dual RP SMA Female
• APPLICATION - For FPV antennas, FPV goggles for quadcopters, wifi antenna,and all other devices with SMA and Reverse Polarity SMA connectors, Perfect for building custom drones, Fit for the Baofeng HT radio; Impedance：50Ω, Insertion loss≤0.15 dB/3GHz,VSWR≤1.1; It can be utilized with any RF device which has a male female SMA connector
• Package Include: 15 Pieces SMA kit RF Coaxial Connector Adapters for Wi-Fi Antenna/Signal Booster/Repeaters/Radio/RF Coaxial Coax/Extension Cable/FPV Drone

Product description
This SMA series is small threaded coaxial connectors with high frequency bandwidth, excellent performance, high reliability and long life, has a wide range of application, eg: connection for two-way radio, audio, video, and other test equipment.
Product Specification:
Temp range:-65～+165℃ (PE Cable-40～+85℃)
Vibration:MIL-STD-202,Method 213
Impedance:50Ω
Frequency Range：DC～12.4GHz
Working Voltage：335V max
Insulation resistance≥ 5000 MΩ
Insertion loss≤0.15 dB/3GHz
TIPS:
Normal SMA male - A pin center,thread inside
Normal SMA female - A hole in center,thread outside
RP SMA male - A hole in center,thread inside
RP SMA female - A pin in center,thread outside

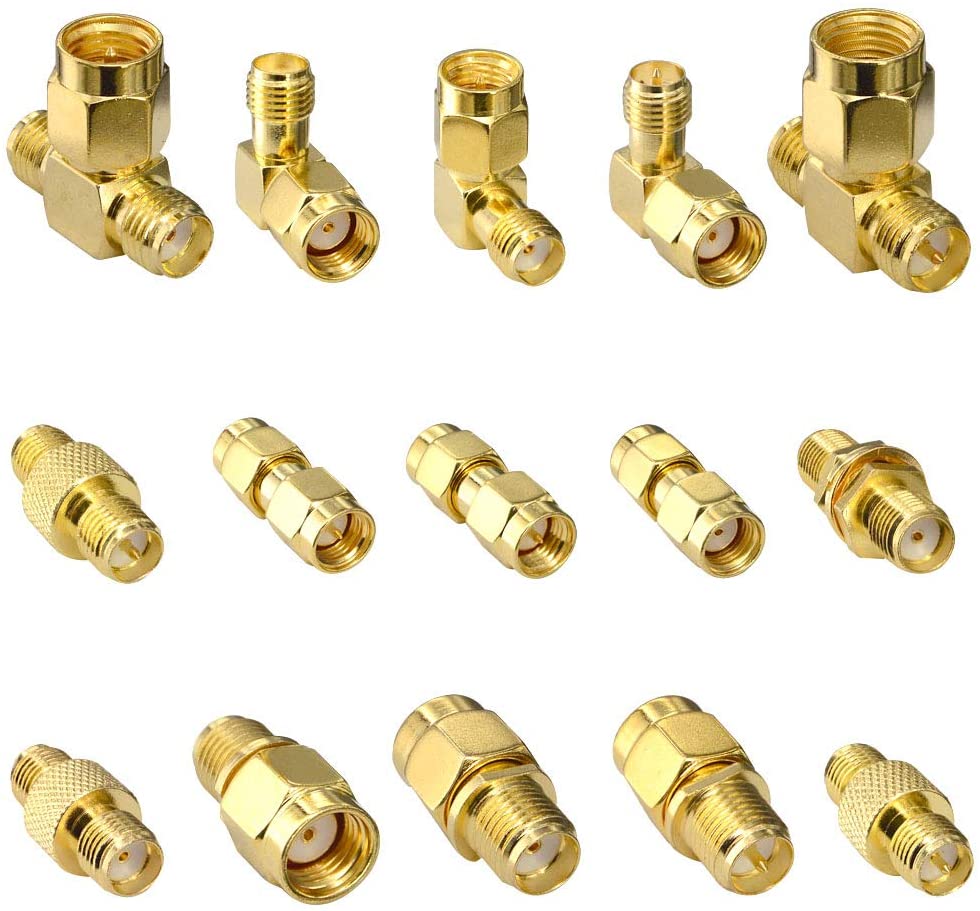

SMA Kits have 15 pieces connectors converters

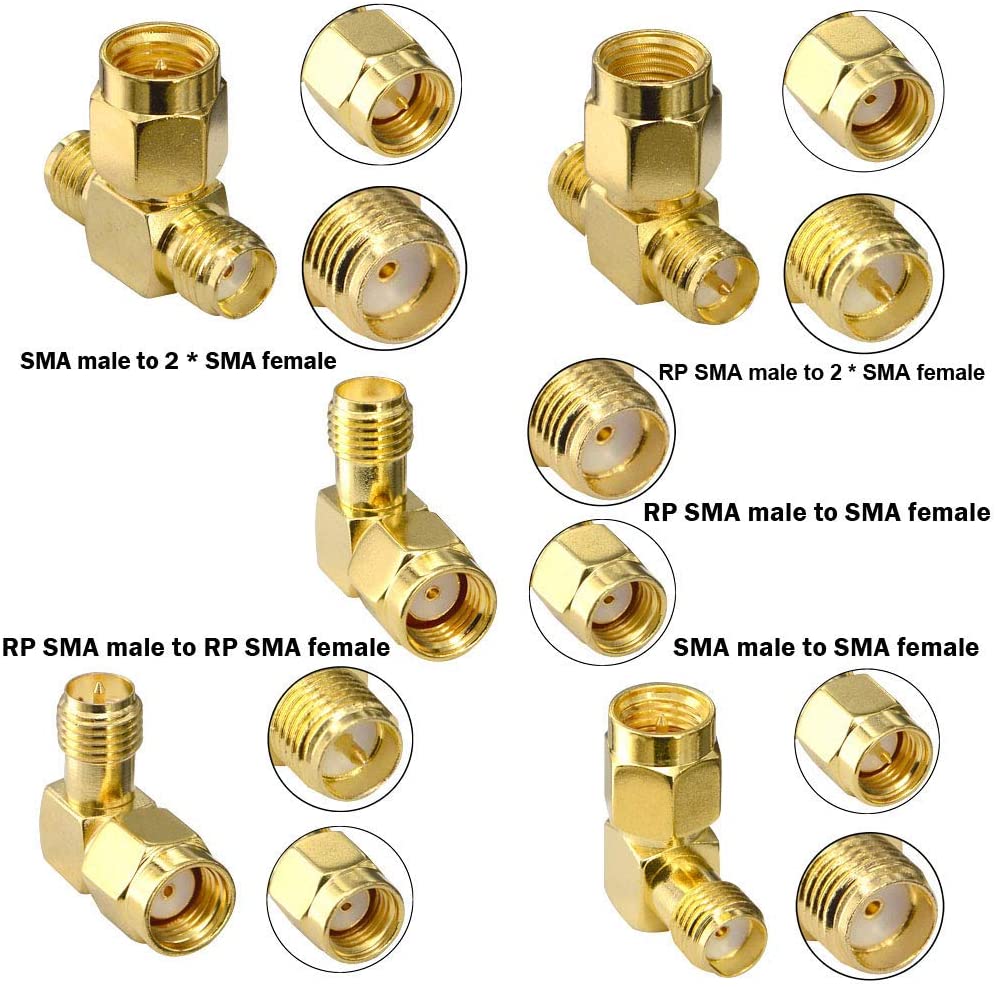

SMA right angle kits include three types: SMA male to female 90 degree & SMA female to RP SMA male 90 degree & RP SMA female to RP SMA male 90 degree

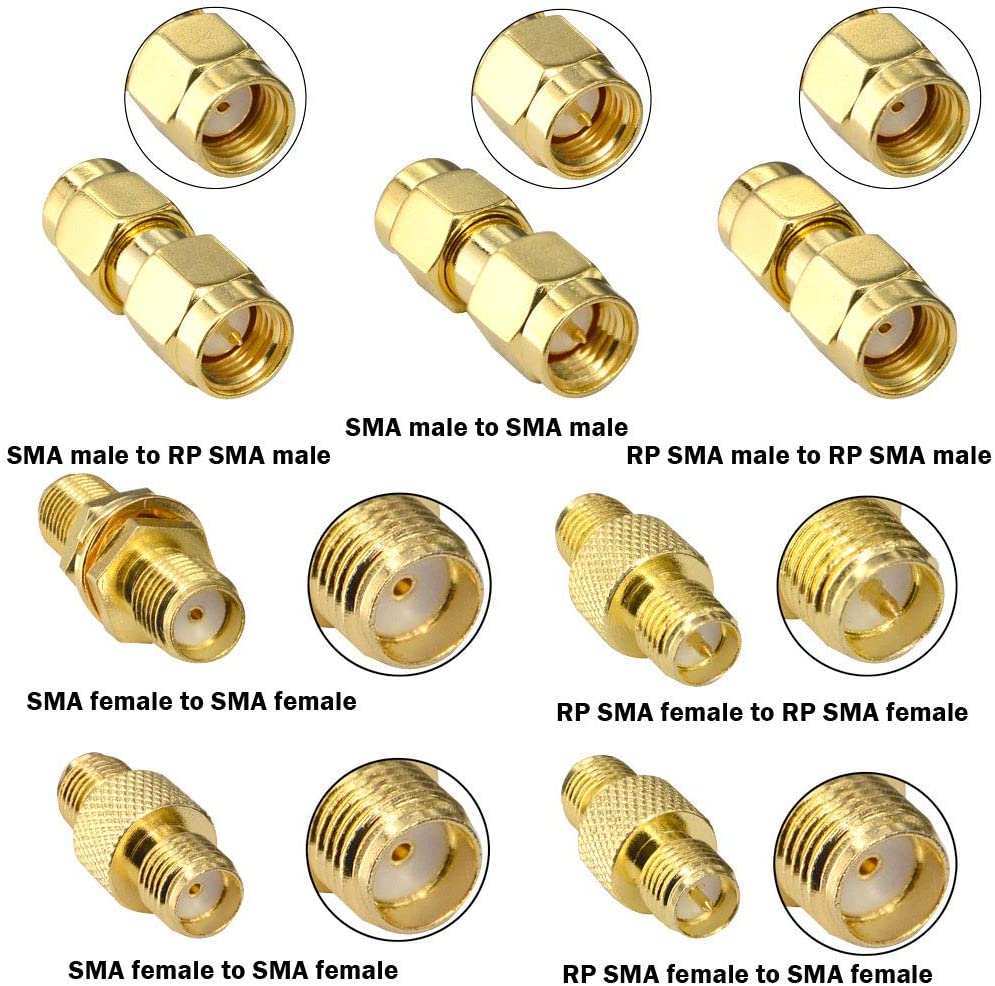

Female to female kits include 4 types: SMA female to female barrel & RP SMA female to RP SMA female barrel & SMA female to RP SMA female barrel & SMA female to female bulkhead
Male to Male kits : SMA male to male & SMA male to RP SMA male & RP SMA male to RP SMA male
SMA 3 way kits : SMA male to dual SMA female & RP SMA male to Dual RP SMA Female

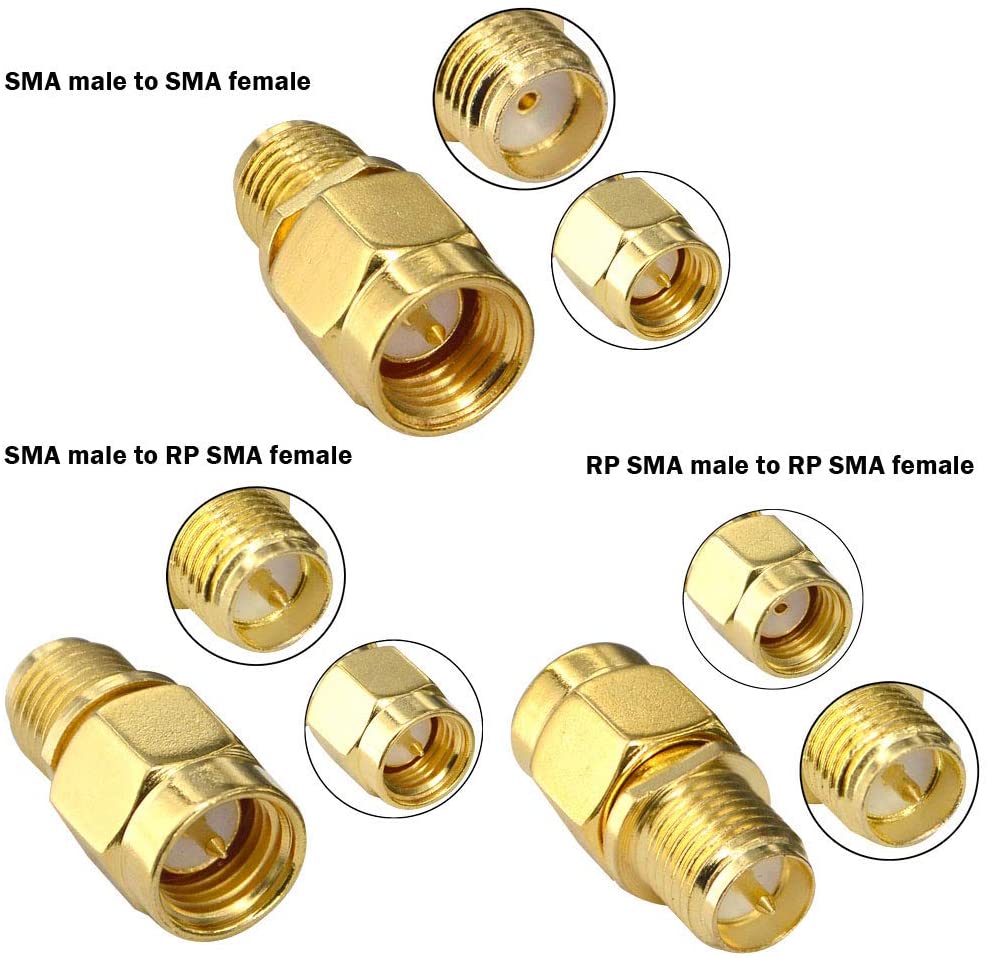

Male to Female kits : SMA male to female & RP SMA male to SMA female & RP SMA Female to SMA male
