Product name：30pcsNickel Plated Shielded Cat6A/Cat7 RJ45 Modular Plug with Cat7/Cat6A Ethernet RJ45 Cable Cap Connector Strain Relief

product number：EB000086

Shop：BEEelec Official Store

weight：181gram

Shelf time:2020-06-11 13:33:53

SHIELDED METAL RJ45 connectors terminate Cat 6A, Cat 7 solid or stranded conductors; Robust shield termination and strain relief allow for one-step termination process provides superior shielding and mitigates alien crosstalk
DIY RJ45 CABLE connector terminates shielded twisted pair solid cable for making custom length Ethernet patch cords; Supports 23 to 26 AWG round or flat solid or stranded wire, for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements; Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation
SUPERIOR TRANSMISSION meets CAT6a performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet channel compliant network, backwards compatible with Cat 5e cable. 50 micron gold-plated contacts on 8P8C network connectors provide faster speed with less interference
SUPERIOR CONSTRUCTION of STP wire connectors with metal housing and gold-plated contacts to suppress alien crosstalk and provide a secure connection; Crimp-style plugs terminate solid or stranded cable with three-point staggered contacts to provide a secure connection
With 30 x Ethernet RJ45 Cable Cap Connector Boots, protect the connector of the cable and prevent dust and water from entering the plugs.(The Ethernet cable cap compatible with cable OD 7~8mm

Shielded RJ45 Cat6A/Cat7 Connector With Strain Relief Boot

Shielded Cat 6A / Cat 7 Modular Plug is designed for sensitive or harsh environments that require security with protection against electromagnetic and radio frequency interference (EMI/RFI) noise and alien crosstalk.
Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation.

CAT6A & CAT7 Shielded Termination Solution

High-performance shielded housing for Cat6A / Cat7.

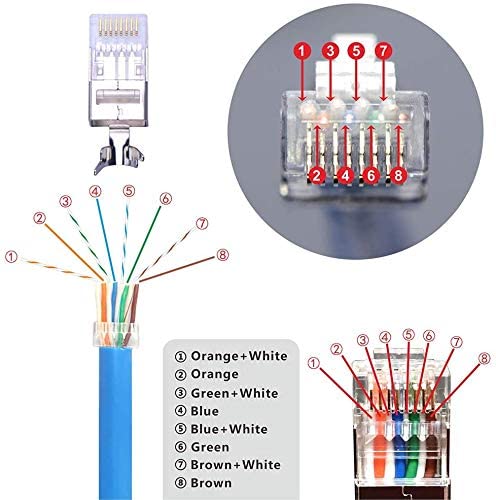

Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.

STP & FTP & UTP Cable Compatible

Supports shielded and unshielded cable.
Supports 23-26 AWG solid or stranded cable,for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements.

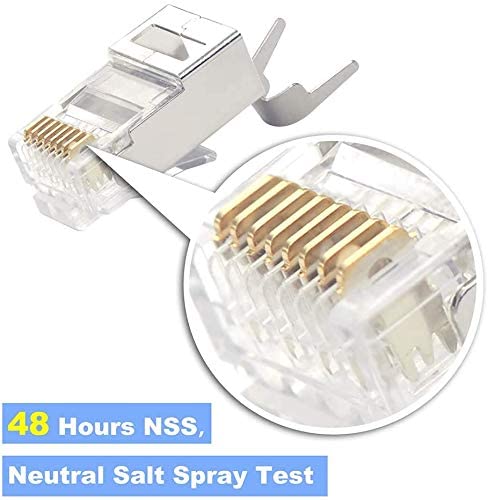

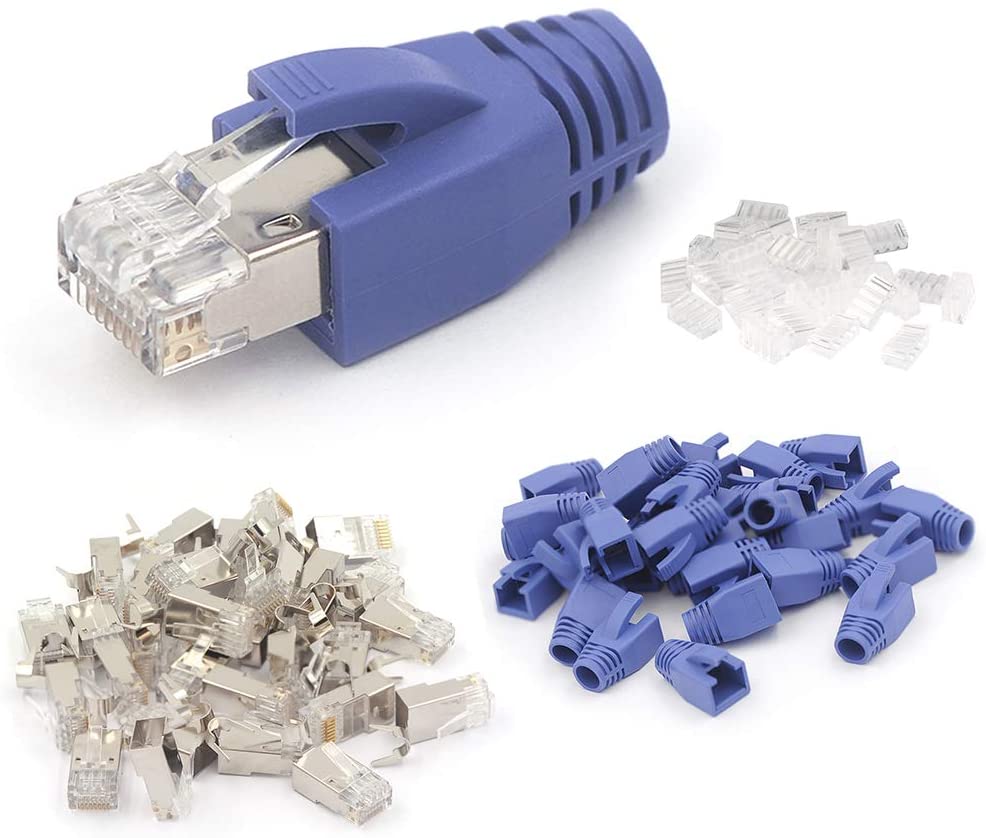

High Quality Construction Strong mating clip for frequent unplugging. Nickel-plated shield structure provide perfect protection from interference. 50 micron gold-plated contacts provide faster speed with less interference.	Cost-Effective 30-Pack Load bars for arranging wires. Strain-relief boot to protect the modular clip. The strain relief boots compatible with cable OD 7~8mm.	What You Get 30 x VCE cat6a/cat7 shielded rj45 modular plugs,load bars, and blue strain relief boots. You can get replacement for free if quality problem.

MATERIAL & FINISH:

Housing: Polycarbonate, Ul94v-0 Or Ul94v-2
Color : Transparent
Contact Blade: Copper Alloy
Conductor : Stranded & Solid Wire.
Gold Plating: 50u"
Can Be Used For The Wire Od FromØ 1.35~Ø1.45

SPECIFICATIONS

UL applications: 250 Voltis AC.Max AT 2 AMPS
Dielectric withstanding voltage : 1000 Voltis AC. 60 SEC
Insulation resistance: 500 mΩ
Contact resistance: 20 mΩ MAX
Insertion cycles: 20 cycles/minute max
Strain relife: 20pound Min
Durability: 1200 mating cycles

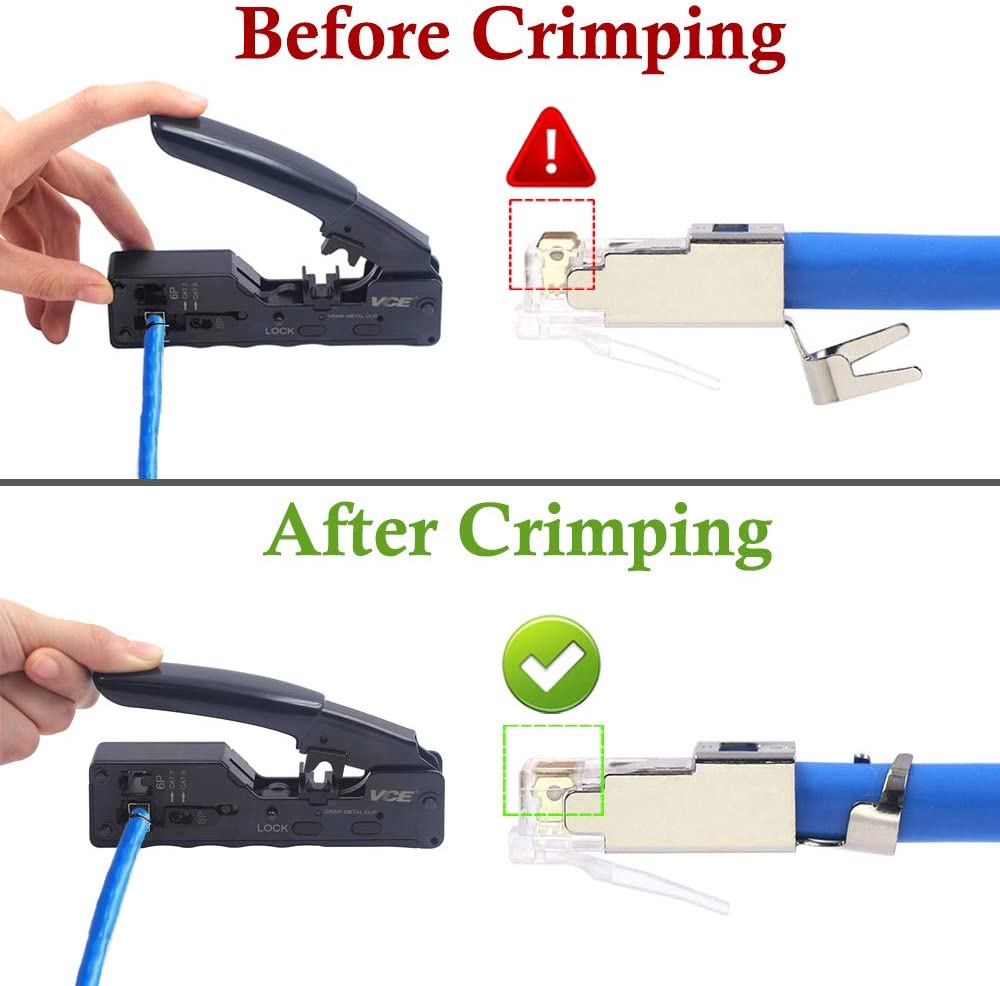

With just one crimping tool , you can assemble the RJ45 Network cable yourself：

Put the plug into crimping tool and crimp plug.
Make the clip and braiding shield, drain wire fully contacted.
Fix cable and complete.


	RJ45 RJ11 Network Ethernet Cable Crimping Tool Compact Modular Crimper	Shielded RJ45 Cat6A/Cat7 Modular Plug+Cable Cap	Shielded RJ45 Cat6A/Cat7 Modular Plug+Cable Cap	Shielded RJ45 Cat6A Modular Plug-Black	Shielded RJ45 Cat6A Modular Plug-Blue	Gold Plated Shielded RJ45 Modular Plug
Compatibility	Cat5-7/RJ45/RJ11	Cat6A/Cat7	Cat6A/Cat7	Cat6/Cat6A/Cat7	Cat6/Cat6A/Cat7	Cat6/Cat6A/Cat7
Material		Gold Plated Contacts	Gold Plated Contacts	Gold Plated Contacts	Gold Plated Contacts	Gold Plated Contacts
UL Listed		✓	✓	✓	✓	✓
Quantity	1 Pack	50 Pack	50 Pack	25 Pack	25 Pack	10 Pack
