WF28 24pin IP67 Waterproof power connectors, LED power cable connector male female car connector, electrical power plug

WF28 24pin high voltage heavy industrial power connector, φ28mm panel cut Contact: φ2.5mm*5(Gold plated copper), 25A / 500V, Contact resistance: 1 Milliohm Wire: <2.5MM= AWG12-16, Cable: 10-14mm, whole size: 4.1*1.3inch / 104*33.8mm Pin number availabl

Mall price

cut price

Market value

Cumulative evaluation0

Cumulative Sales0

Mobile phone purchase

Distribut

Dong Wan city to

service

from BEEelec Official Store Delivery and after-sales service

Integral available

Available 0

Promise

genuine goods
garantee for the return
fast

Number

Inventory 个

Buy now Add to Cart

BEEelec Official Store

Related classification

Power, Circuit Protection

Antenna

Inductor / Choke / Transformer

Other similar brands

BEEelec

New
Recom
Hot

Recent browse

Clear

Commodity details
User comments（0）
User discussion circle

Mobile phone purchase

Add to Cart

Price：

Number：

Inventory 个

Determine cancel

Commodity details

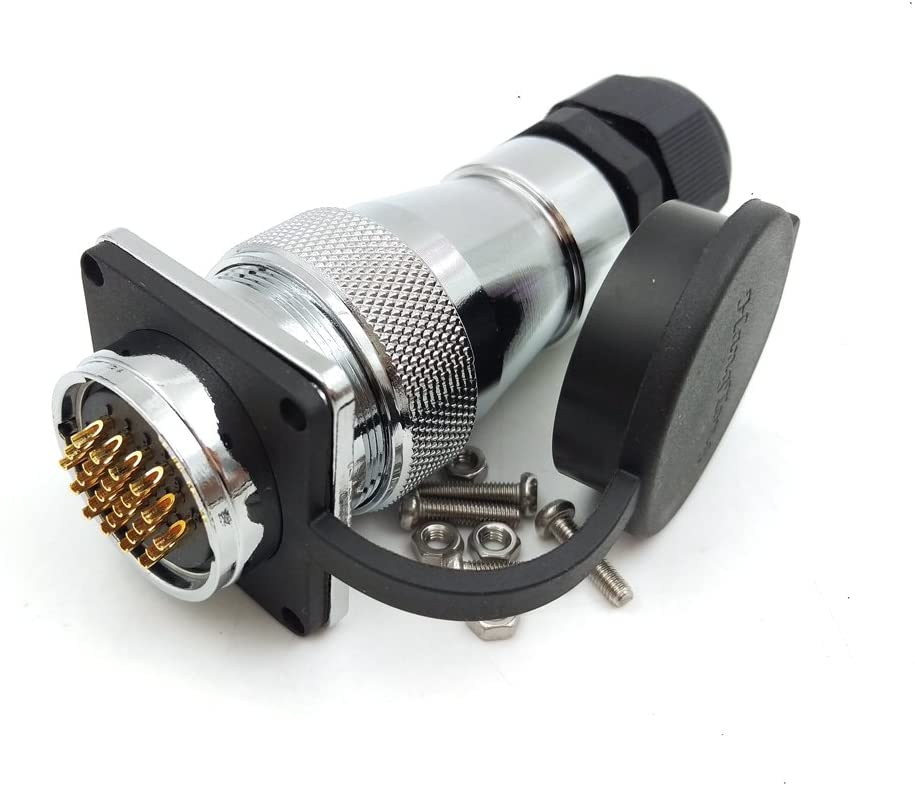

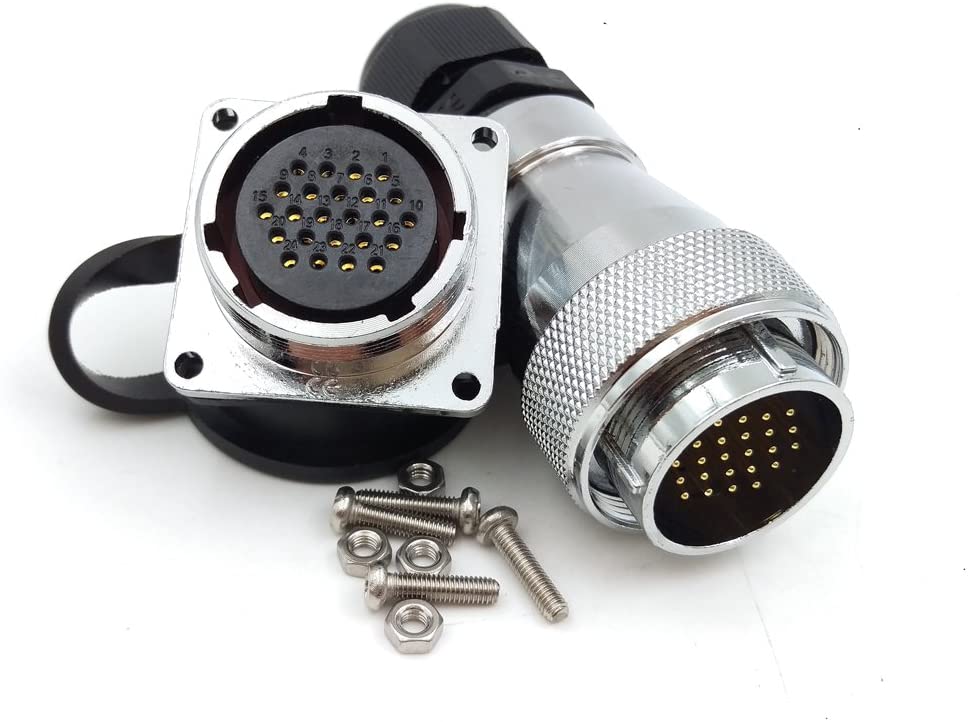

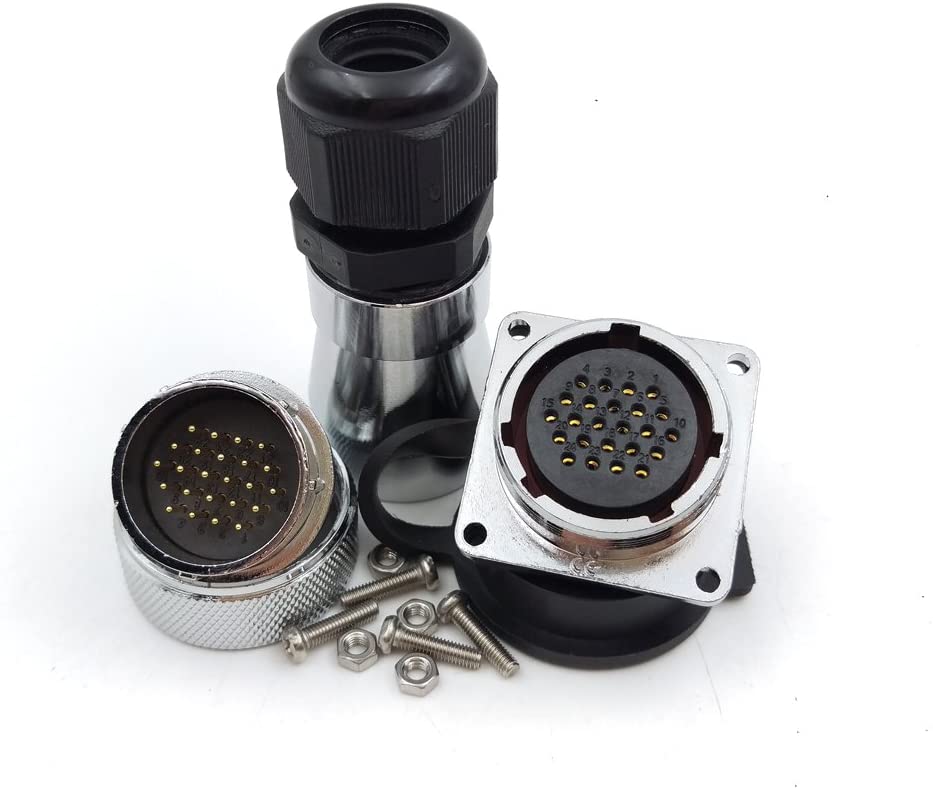

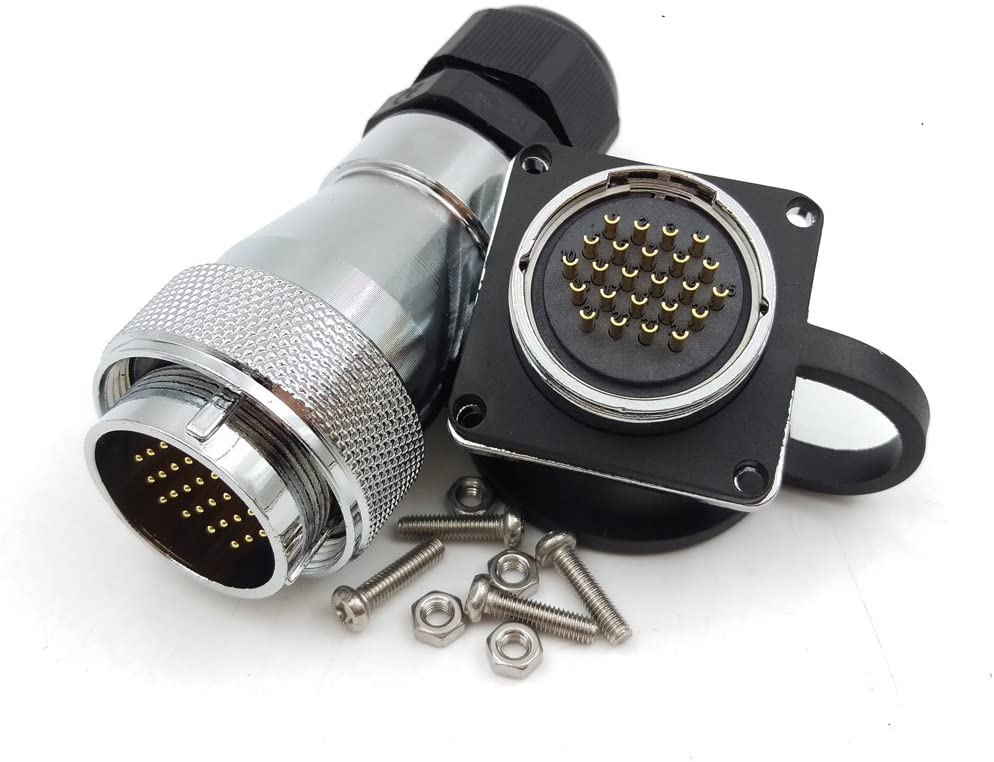

Product name：WF28 24pin IP67 Waterproof power connectors, LED power cable connector male female car connector, electrical power plug

product number：EB000075

Shop：BEEelec Official Store

weight：159gram

Shelf time:2020-06-10 14:05:00

WF28 24pin high voltage heavy industrial power connector, φ28mm panel cut
Contact: φ2.5mm*5(Gold plated copper), 25A / 500V, Contact resistance: 1 Milliohm
Wire: <2.5MM= AWG12-16, Cable: 10-14mm, whole size: 4.1*1.3inch / 104*33.8mm
Pin number available: 5/7/10/12/16/17/20/24/26pin, IP: IP20(socket with rubber cap)
Professional and trusted power connector wholesale and retail supplier.

Product name: WF28 24pin heavy industrial metal power connector
Contact: φ2.5mm*5(Gold plated copper)
Rated current: 25A
Working voltage: 500V
Test voltage: 1500V
Contact resistance: 1mΩ
Insulation resistance: 2000mΩ
Wire: <2.5mm = AWG12-16
Cable: 10-14mm
IP rating: Plug: IP20, socket: IP67
Mating cycle: 500times
Temperature range: -25~+65°C
Shell material: zinc alloy
Pin number availalble:5/7/10/12/16/17/20/24/26 pin
Connector whole size: 4.1*1.3inch / 104*33.8mm
