Product name：WF28 Matel Connector φ28mm Industrial Connector Industrial Device Power Plug Electrical Motor Power Charger Plug Aviatio

product number：EB000073

Shop：BEEelec Official Store

weight：159gram

Shelf time:2020-06-10 14:02:22

WF28 17pin high voltage heavy industrial power connector, φ28mm panel cut
Contact: φ2.5mm*5(Gold plated copper), 25A / 500V, Contact resistance: 1 Milliohm
Wire: <2.5MM= AWG12-16, Cable: 10-14mm, whole size: 4.1*1.3inch / 104*33.8mm
Pin number available: 5/7/10/12/16/17/20/24/26pin, IP: IP20(socket with rubber cap)
Professional and trusted power connector wholesale and retail supplier.

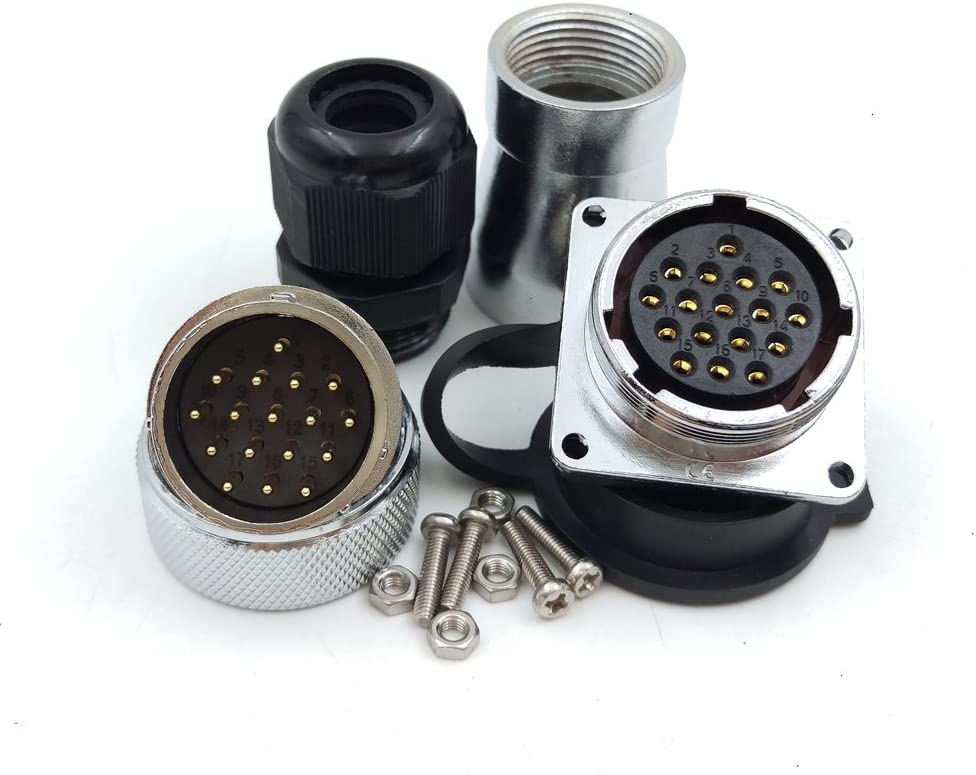

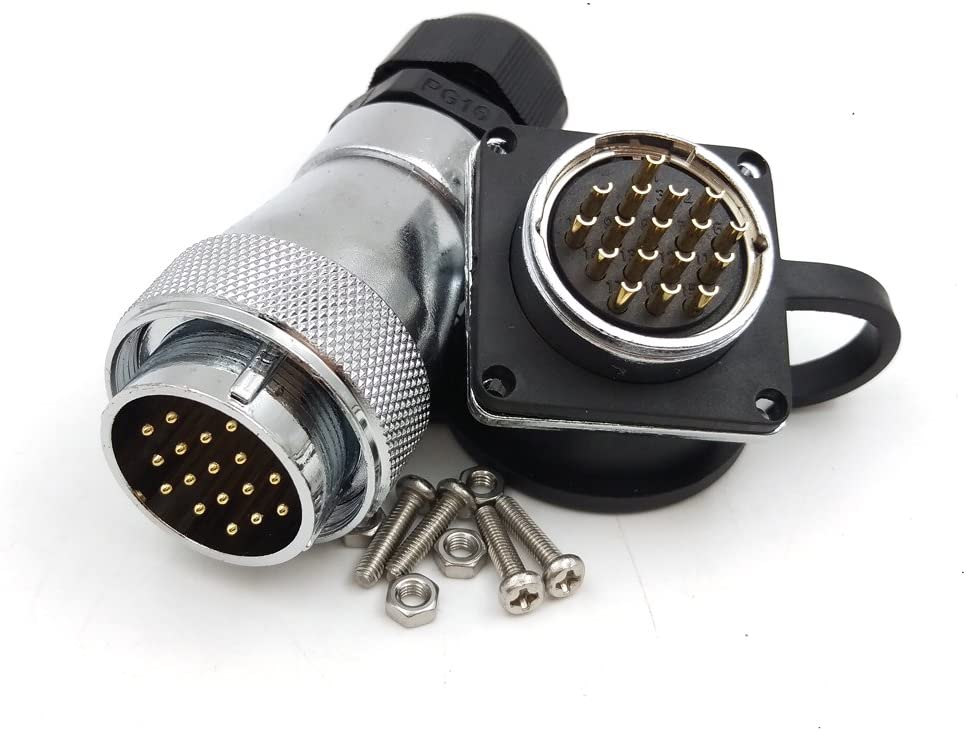

Product name: WF28 17pin heavy industrial metal power connector
Contact: φ2.5mm*5(Gold plated copper)
Rated current: 25A
Working voltage: 500V
Test voltage: 1500V
Contact resistance: 1mΩ
Insulation resistance: 2000mΩ
Wire: <2.5mm = AWG12-16
Cable: 10-14mm
IP rating: Plug: IP20, socket: IP67
Mating cycle: 500times
Temperature range: -25~+65°C
Shell material: zinc alloy
Pin number availalble:5/7/10/12/16/17/20/24/26 pin
Connector whole size: 4.1*1.3inch / 104*33.8mm
