Description:

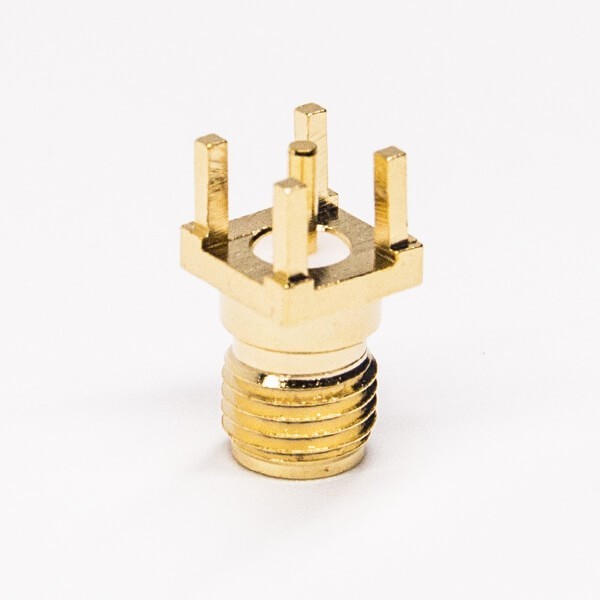

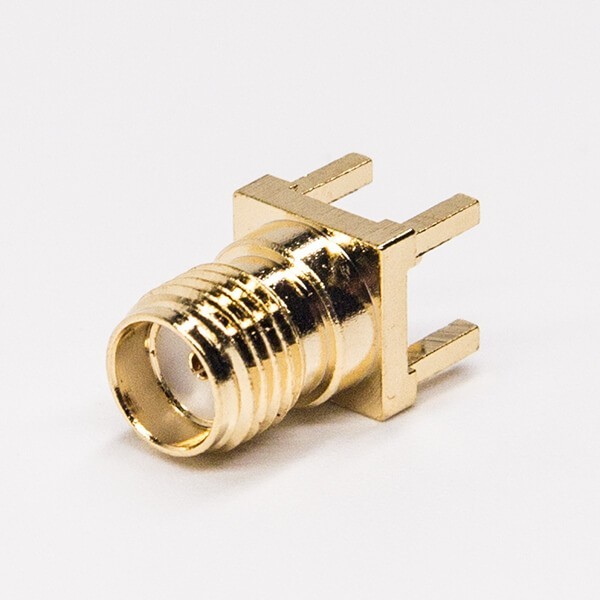

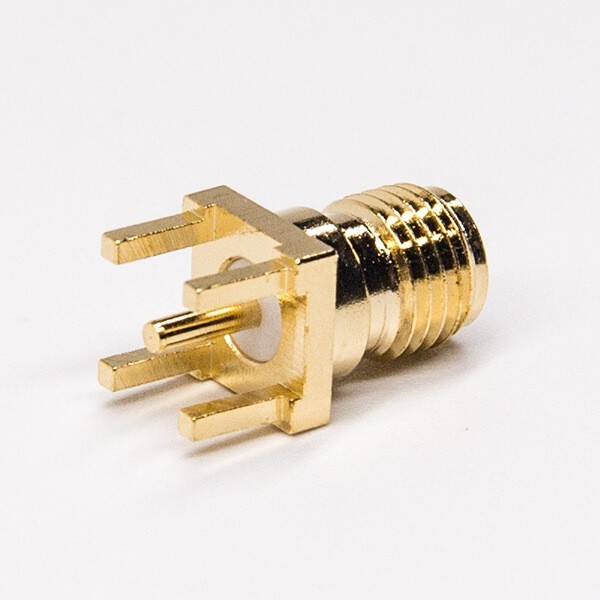

- Connect SMA to PCB Panel Edge Mount Type Device.
- Compatible with SMA Connectors, Used for Connecting a SMA Female to PCB Panel Edge Mount jack.
- Well-made, there are 4 lead bending heads, its contact distance is 4mm/0.15''
- Suitable for joining the coaxial cable of the radio frequency to use
in the radio equipment and radio equipment and radio frequency loop of
the electron tube instrument.
- Great for many projects which
involves SMA Type connector Widely used for Antennas, Broadcast, Radios,
Wi-Fi, Telecom, Coaxial cable, LMR, Wireless LAN Devices, CCTV,
Microwave Applications and Digital Communication System.
Specification:
- Product Name : RF Connector;
- Model : SMA-KE;
- Connectors Type : Female/ 4 Pin;
- Ferquency Range : 0-6GHz
- Insulation Resistance : >=5000m;
- Insulation Voltage : 1000V;
- Connector Durability : 500 Cycles;
- Thread Diameter : 7mm
- Contact Pin Distance : 1.7mm
- Total Size : 13.5 x 7mm/ 0.53" x 0.3"(L*Max.D);
- Material : Metal
- Main Color : Gold Tone;
