Description:

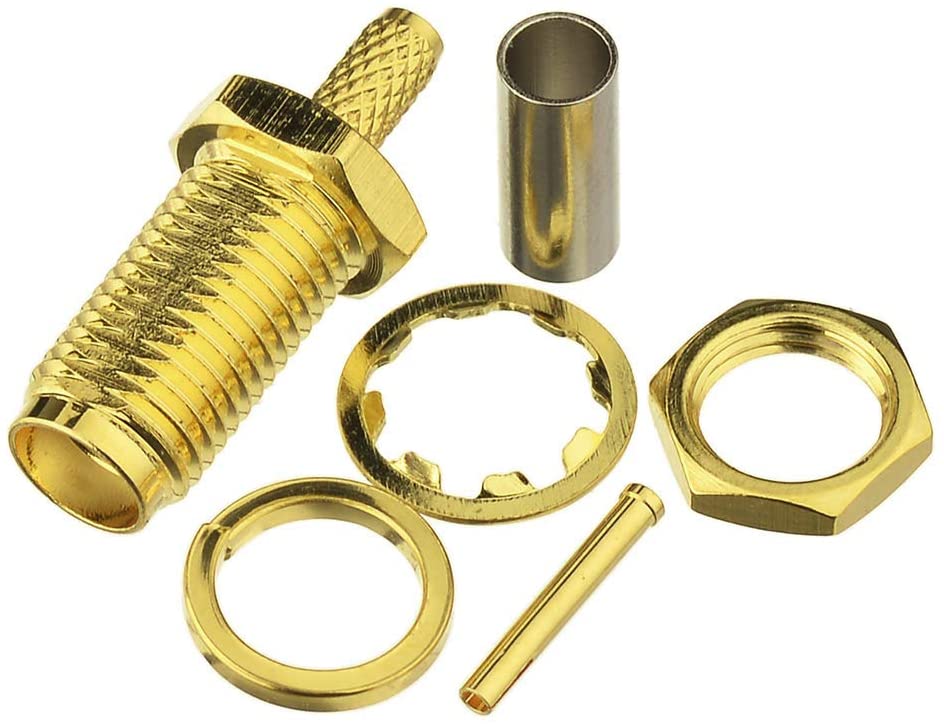

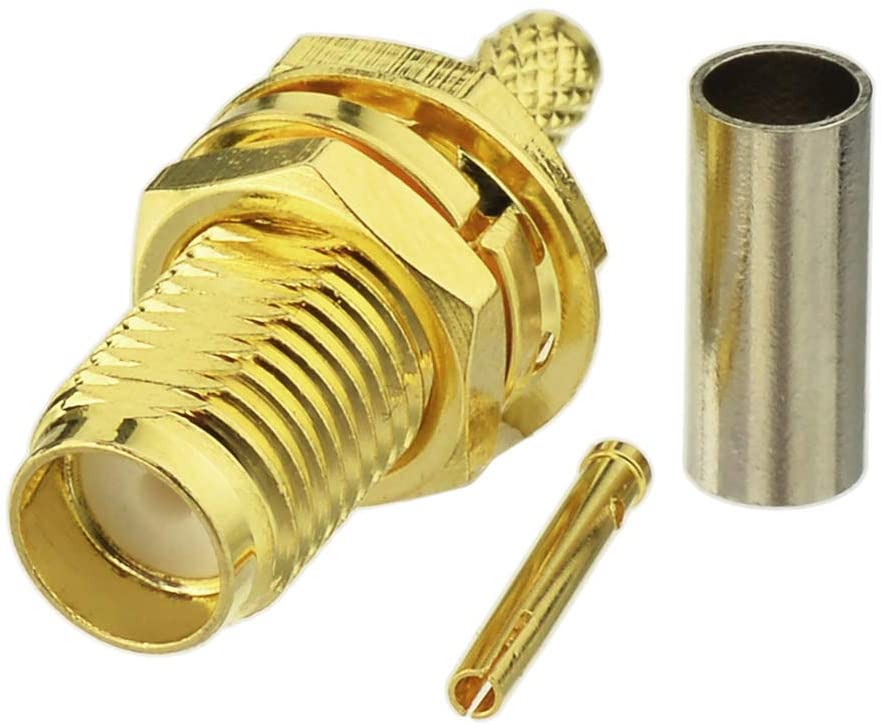

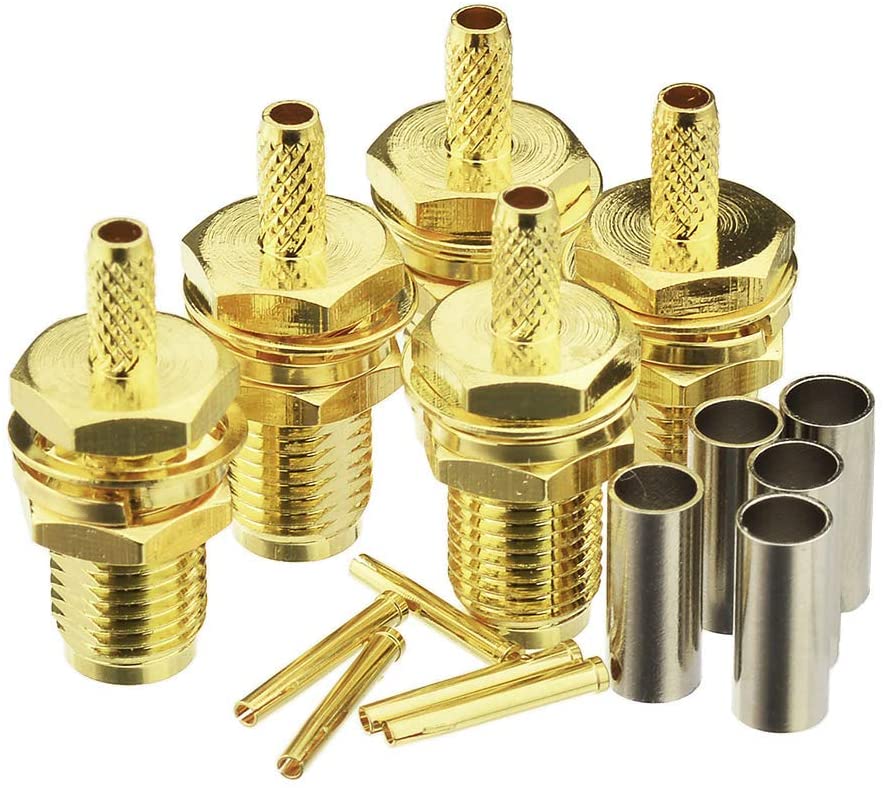

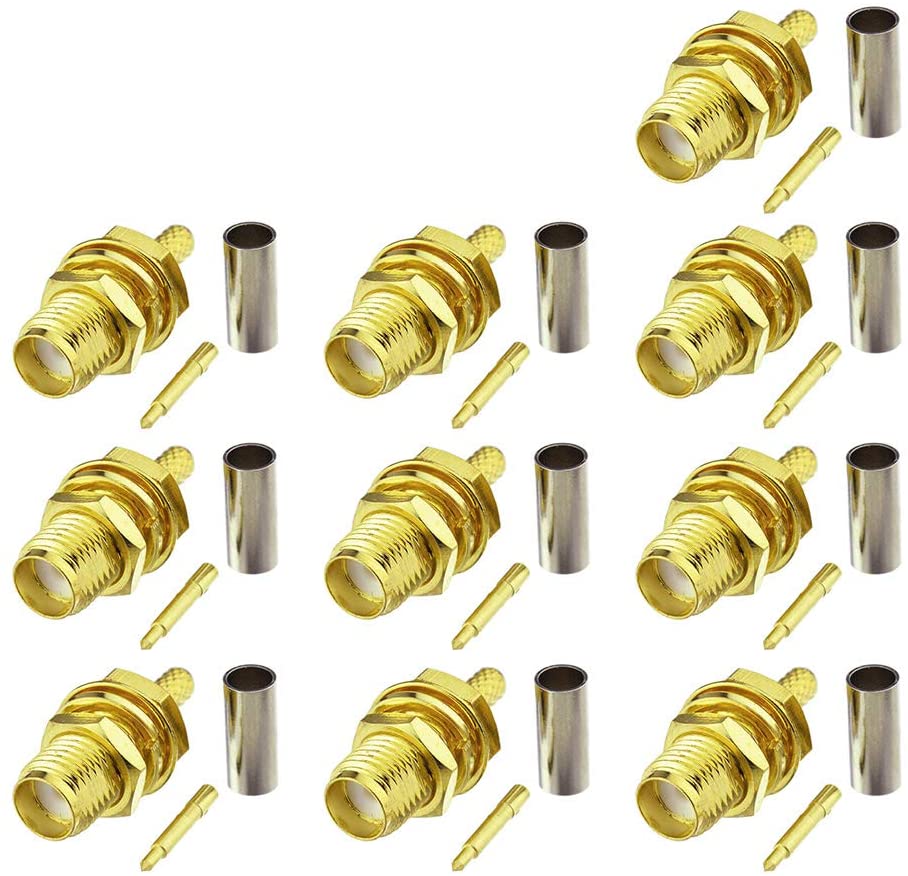

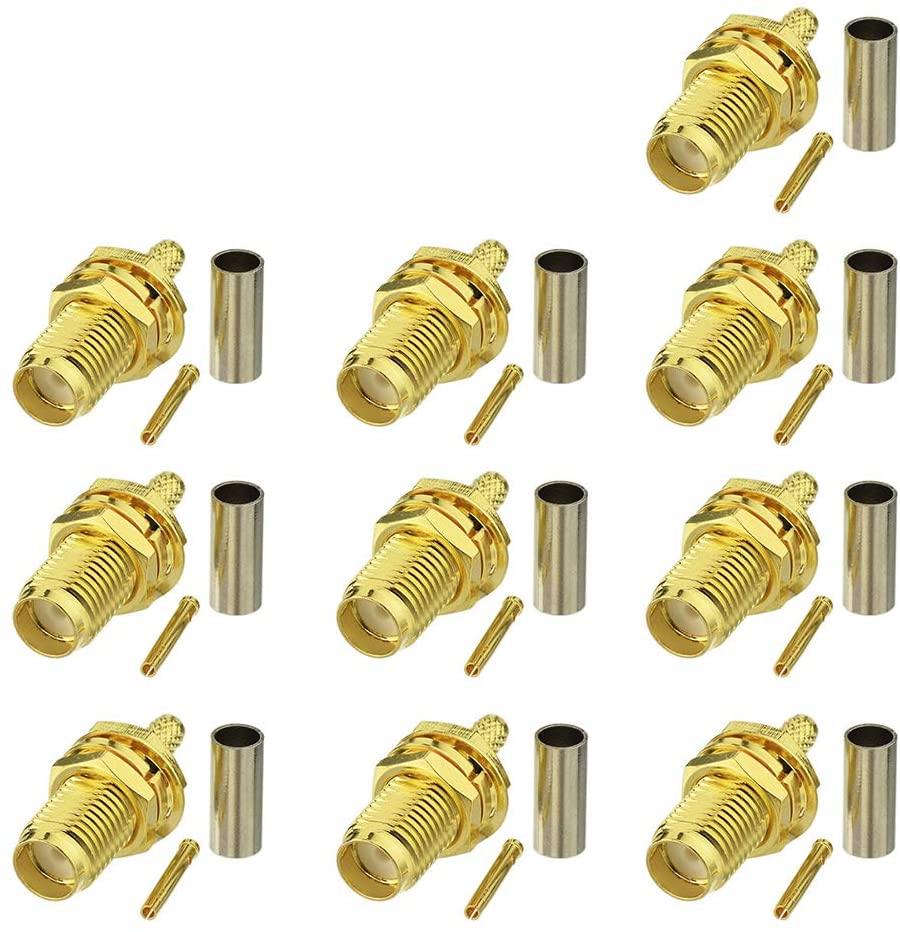

Using a threaded interface, SMA 50 Ohm connectors are
semi-precision units that provide excellent electrical performance from
DC to 18 GHz and outstanding mechanical durability. SMA connectors
feature stainless steel or brass construction and ¼ - 36 threaded
coupling, which offers high performance in a compact design.
For
phase array radar, test equipment, ILS landing systems and other
instrumentation using phase matching techniques, SMA interconnects offer
a precise and simple means of phase adjustment for microwave devices.
Built in accordance with MIL-C-39012 and CECC 22110/218, SMA connectors
can be mated with all connectors that meet these specification mating
diameters regardless of manufacturer.
Features and Benefits:
Light weight, compact and vibration proof design Low cost commercial
grade (Brass SMA) Terminates to all standard flexible coaxial cables,
low-loss type cables and industry standard semi-rigid and conformable
cables
Applications: Base stations Antennas Telecommunications Instrumentation PC/LAN
