Product name：2 x 6dBi 2.4GHz 5GHz Dual Band WiFi RP-SMA Antenna + 2 x 20cm U.fl/IPEX Cable for Wireless Routers Mini PCIe Cards Netwo

product number：EB000135

Shop：BEEelec Official Store

weight：256gram

Shelf time:2020-06-13 23:05:40

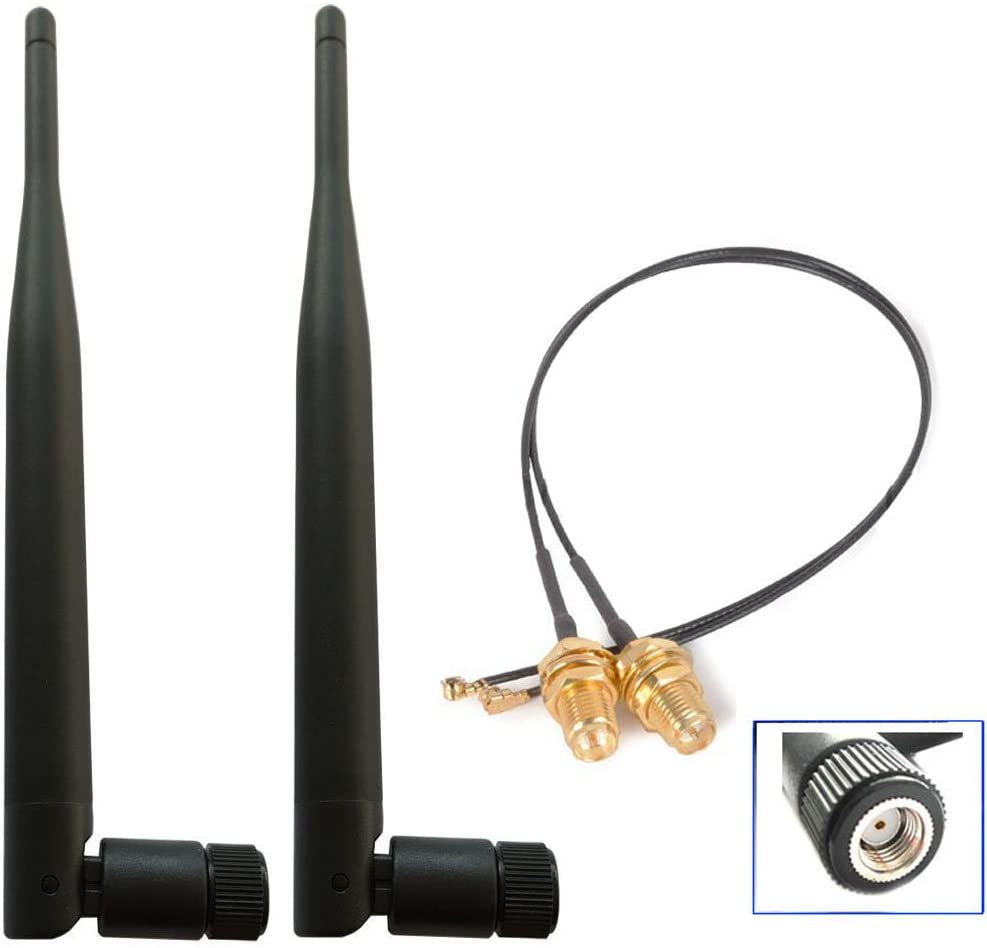

Kit includes 2x 6DBi Omni-directional Antenna + 2 x 20cm U.FL / IPEX to RP-SMA Pigtail Antenna WiFi Cable
90 degree tilt and 360degree swivel on antennas
This kit allows you to add high gain external antennas to many wireless routers that do not normally support removable antennas

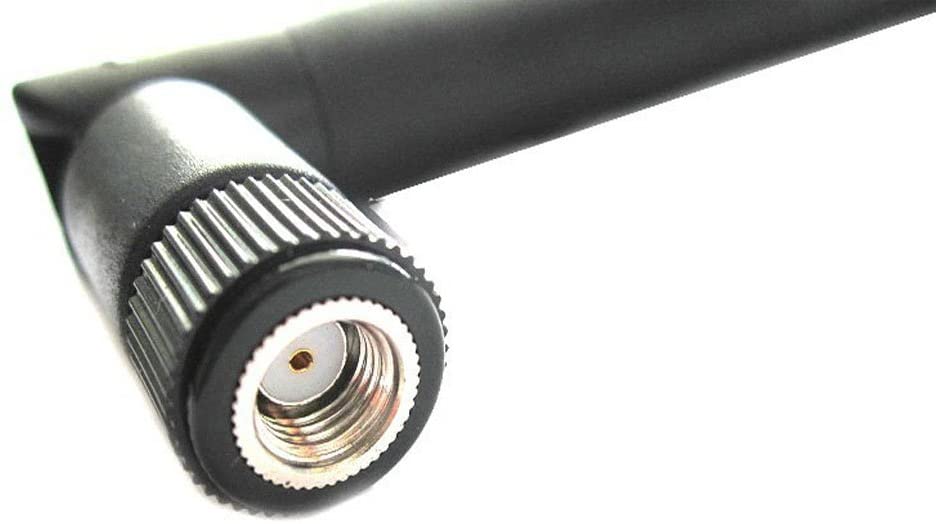

RP-SMA Female connector, works with most indoor wireless AP/Router
1 Year Warranty

Antenna Specifications:

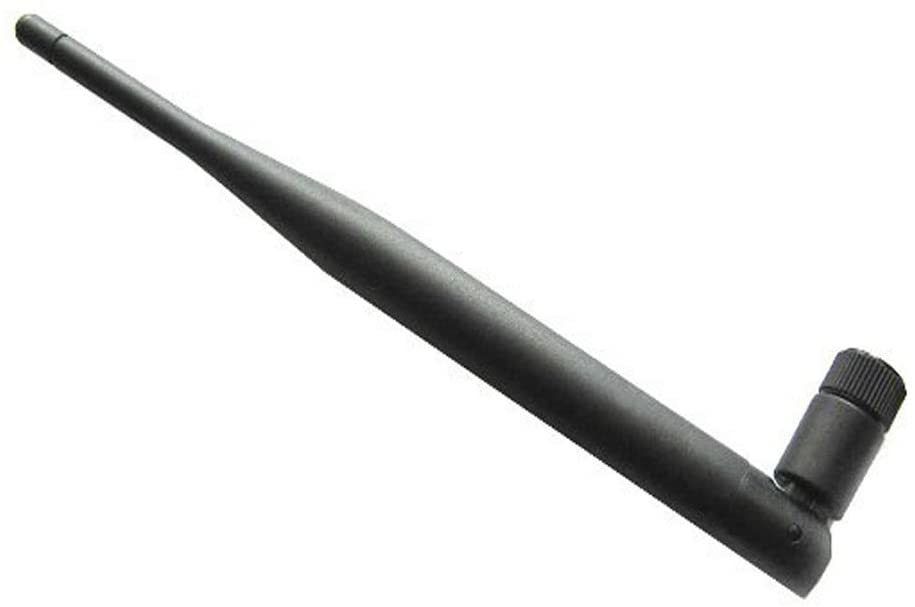

Radiation: Omni-directional

Gain: 6dBi or 8dBi

Frequency Range(MHz): 2300-2500, 5725-5850MHz

Angle Adjustable: 90°

6dbi Dimension: 19.2cm(Unbend) / 17cm(Bend)

8dbi Dimension: 15.6cm(Unbend) / 13.3cm(Bend)

Application Condition Indoor Operating Temperature： -40~+85

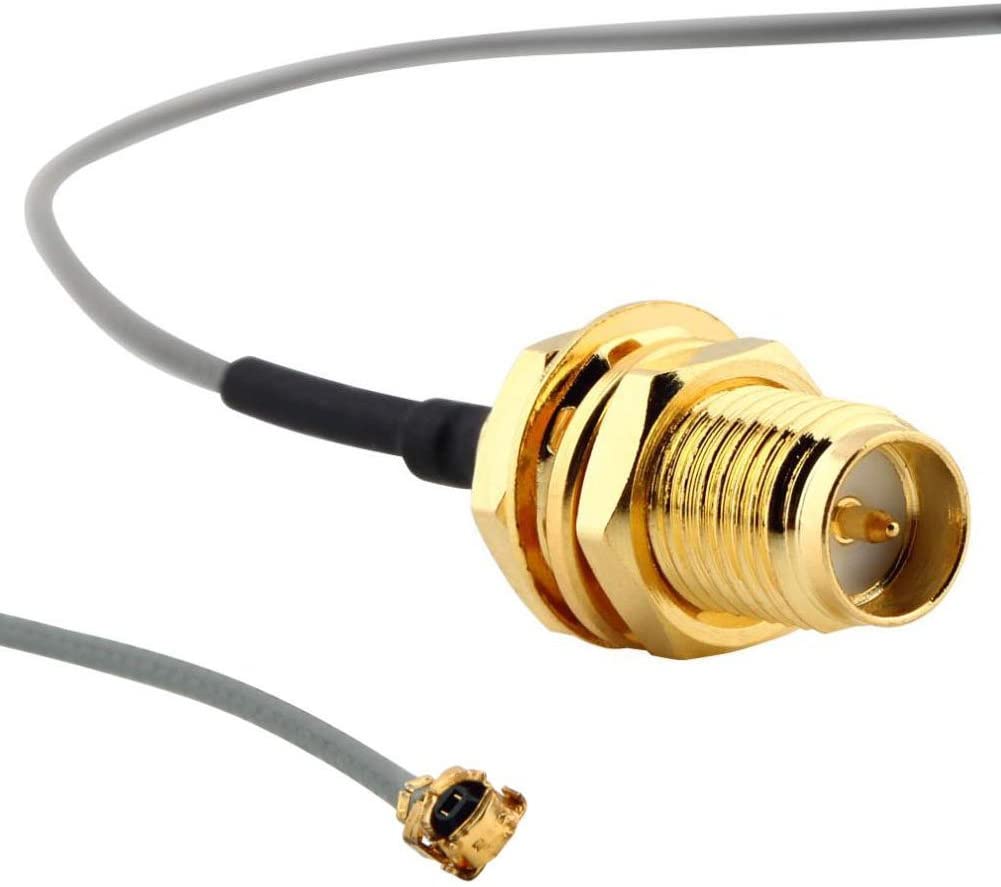

Package include: 2 X 6dBi or 8dBi Dual Band WiFi RP-SMA Male Antenna + 2X 20cm U.FL/IPEX to RP-SMA Female Pigtail Cable

Usage

2.4GHz 5GHz Dual Band WiFi RP-SMA Antenna Used For Mini PCIe Card Wireless Routers, FPV Drone ,PC Desktop, Signal Booster，Repeater, Radio and PS4 Build etc.


6dBi RP-SMA Male Antenna	8dBi RP-SMA Male Antenna	20CM U.FL/IPEX(MHF1) to RP-SMA Female Pigtail Cable	How to use the antenna?

How to choose the pigital cable?


	6dbi antenna with IPEX (MHF1) cable	8dbi antenna with IPEX (MHF1) cable	6dbi antenna with IPEX (MHF4) cable	8dbi antenna with IPEX (MHF4) cable
Gain of Antenna	6dbi	8dbi	6dbi	8dbi
Connector Type of Antenna	RP-SMA Male	RP-SMA Male	RP-SMA Male	RP-SMA Male
Connector 1 Type of Pigtail Cable	RP-SMA Female	RP-SMA Female	RP-SMA Female	RP-SMA Female
Connector 2 Type of Pigtail Cable	IPEX (MHF1)	IPEX (MHF1)	IPEX (MHF4)	IPEX (MHF4)
Length of Pigtail Cable	20CM	20CM	20CM	20CM
Fit for Which Cards	Mini PCI-e Cards	Mini PCI-e Cards	M.2(NGFF) Cards	M.2(NGFF) Cards
The Diameter of Circle On Wireless Cards	2MM	2MM	1.5MM	1.5MM
Wireless Cards Model	intel 7260 3160 etc.	intel 7260 3160 etc.	intel 7265 8260 8265NGW 9260 9265 9560 etc.	intel 7265 8260 8265NGW 9260 9265 9560 etc.
