- Product name：Coaxial Cable TNC Connector Jack Straight Solder Type for Cable UT141
- product number：EB-002-0027
- Shop：BEEelec Official Store
- weight：0gram
- Shelf time:2020-12-23 17:19:43
Features:
- Cable Connector, jack/female, Straight/180～ㄛ50次, Solder Type, UT141;
- Thread Version of BNC used in Vibration-Intense application with high durability;
- Higher Performance than BNC with 0-11 GHz Microwave frequencies and 50 ohm impedance;
- High Quality with 30 days 100% Money backㄛ made according to MIL-C-39012 standard;;
- From the OEM Original Factory, same quality with much better price.
Main Application of TNC Connectors:
Cellular Mobile Phones, Aviation Controls, Telemetry, Bluetooth and GPS,?Wireless Base Station, Microwave Comonents, Radar, Networks,Antenna Mounts, Machine to machine communications, Security Devices, Instrumentation.
Techinial Datasheet:
Electrical Characteristics
- Impedanceㄩ50 ohm
- Frequency Range:?0~4 GHz for 50 ohm
- VSWR:?Straight type 汨 1.3max / R/A type 汨 1.5max?
- Dielectric Withstanding Voltage: 1500 V rms?
- Working Voltage: 500 V rms?
- Center Contact Resistance 汨 3.0?m次 (Milliohms max.)?
- Outer Contact Resistance 汨 2.0 m次 (Milliohms max.)?
- Insultation Resistance 沖5 ℅ 10?3?m次 (Milliohms min.)
Mechanical Characteristics
- Coupling:?7/16-28 thread
- Contact Retention: 6 lbs min.
- Mating Durability: 沖500 cycles
Environmental Characteristics
- Environmental Characteristics:?Teflon -55oC~+155oC?
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Material:
| Part | Material | Finish |
| Body | Brass | Nickel?(Ni) |
| Center Contact Pin | Be-Cu | Gold |
| insulator | PTFE | None |

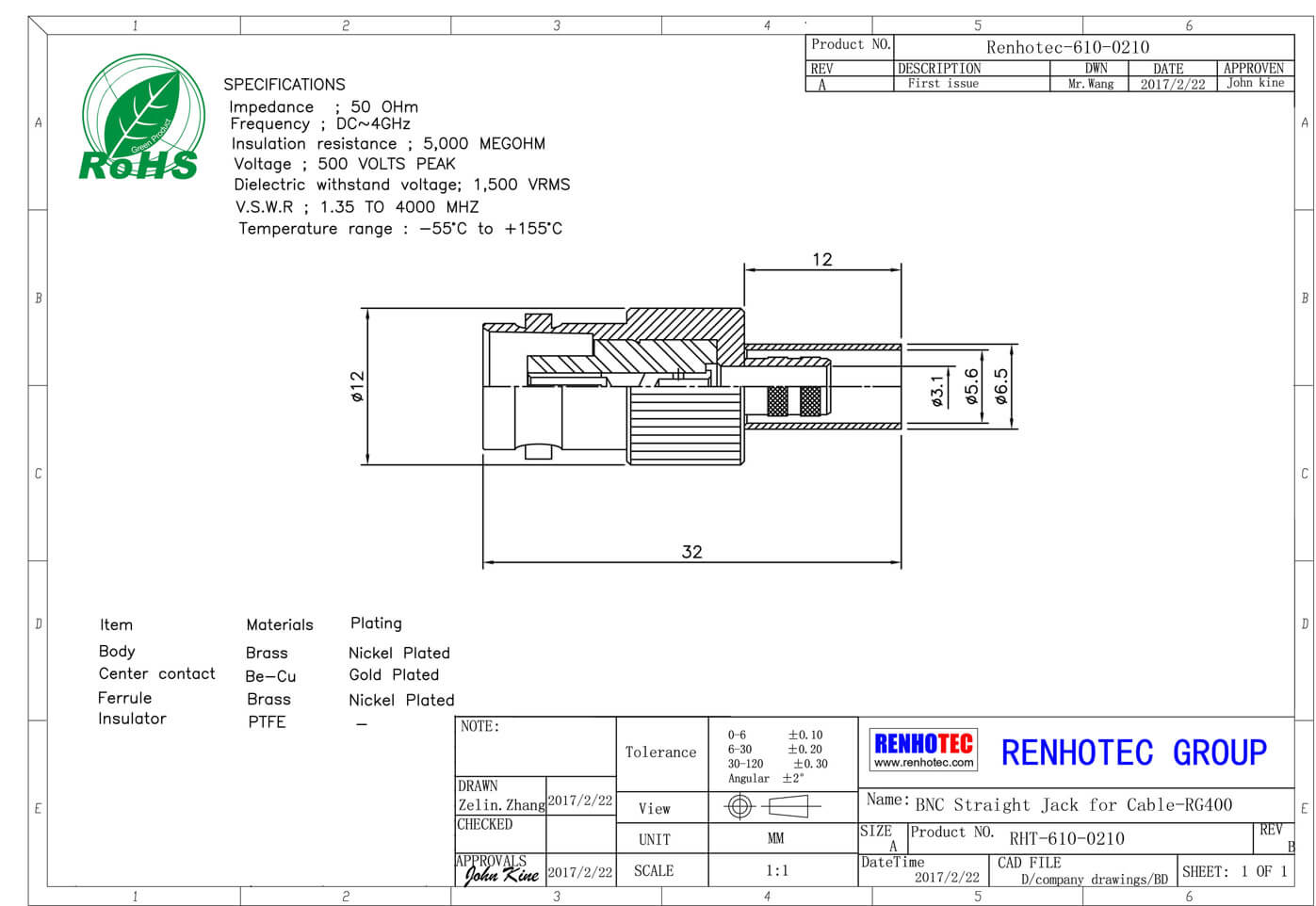

Drawing:
